30B Universal High-Efficiency Pulverizer (Set)
The 30B series universal high-efficiency pulverizer unit is composed of a pulverizer, an ESC material collection box and an ESC dust collector to solve the problem of dust flying during the pulverization process.
0519-88903770
Details




Features and use

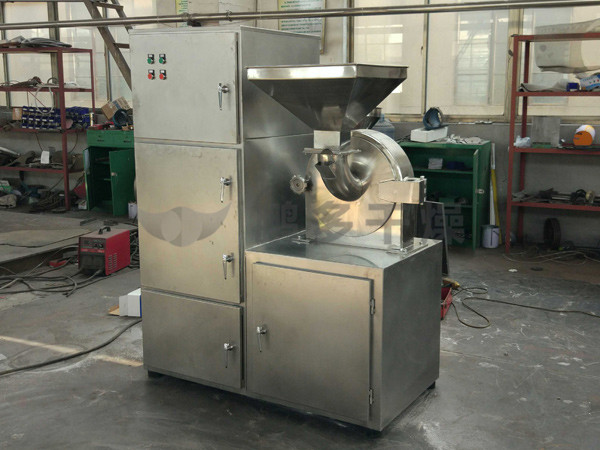

1.jpg  This machine (group) is suitable for crushing brittle materials in medicine, chemical industry, food, pesticide and other industries. It is a new generation of crushing equipment integrating crushing and dust collection, and has a wide range of applications.

Structure and principle

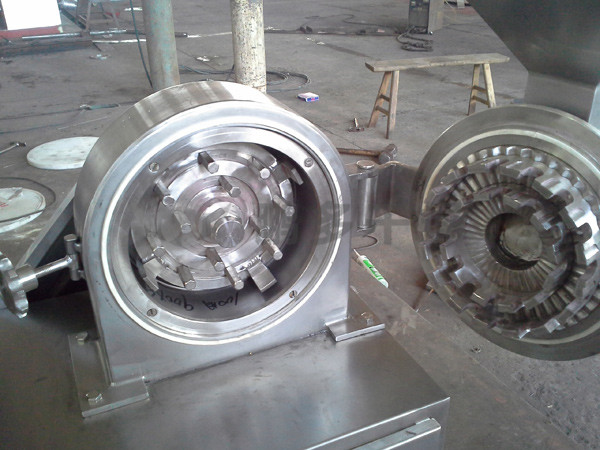

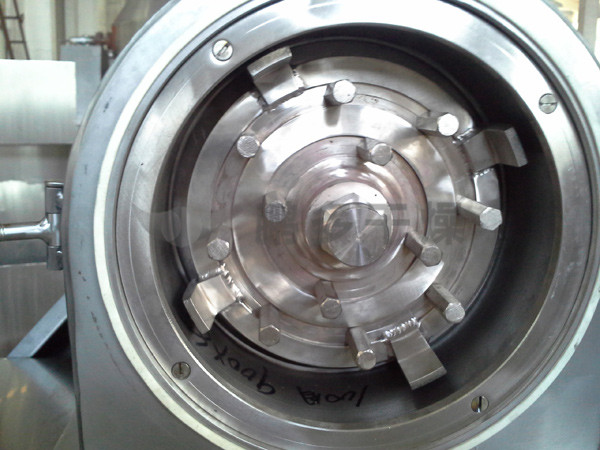

  The unit uses the relative motion between the movable tooth plate and the fixed tooth plate to make the material impact and friction through the teeth and between the materials; Impact and get crushed. The crushed material will automatically enter the predation bag under the action of rotating centrifugal force, and the dust will be filtered and recycled by the dust collector through the cloth bag. The machine is designed according to the "GMP" standard and is made of stainless steel materials. There is no dust flying in the production process. It can also improve the utilization rate of materials and reduce enterprise costs, which has reached the international level.

Parameters



ModelUnit20B/20B set30B/30B set40B/40B set60B/60B set
Productive powerkg/h60-150100-300160-800500-1500
Spindle speedr/min4500380034002800
Feed sizemm6101215
Crushing finenessmesh60-15060-12060-12060-120
Crushing motor powerkw45.51115
Power of dust suction fankw1.51.51.52.2
Weightkg250320550680
Overall dimension(L×W×H)mm550×600×1250600×700×1450800×900×15501000×900×1680
Overall dimension(set)(L×W×H)mm1100×600×16501200×650×16501350×700×17001550×1000×1750
