EYH Two-Dimensional Motion Mixer
The two-dimensional mixing machine is mainly composed of three parts: rotary drum, swing frame and frame. The rotary drum is installed on the swing frame, supported by four rollers and axially positioned by two retaining wheels.
0519-88903770
Details




Working principle
  The two-dimensional mixing machine is mainly composed of three parts: rotary drum, swing frame and frame. The rotary drum is installed on the swing frame, supported by four rollers and axially positioned by two retaining wheels. Among the four supporting rollers, two of the driving wheels are driven by the rotating power system to rotate the rotary drum. The swing frame is driven by a group of crank and swing mechanism. The crank and swing mechanism is constructed on the frame, and the swing frame is supported on the frame by bearing components.




Performance characteristics
  The rotary drum of EYH two-dimensional mixer can carry out two motions at the same time, one is the rotation of the rotary drum, and the other is the swing of the rotary drum with the swing frame. The mixed materials rotate, turn over and mix with the rotary drum in the rotary drum, and at the same time, the mixed materials move back and forth with the swing of the rotary drum. Under the joint action of these two movements, the materials are fully mixed in a short time. EYH two-dimensional mixer is suitable for mixing all powder and granular materials.

Parameters



Specification and modelVolume(L)Loading factorLoading weight
(kg)

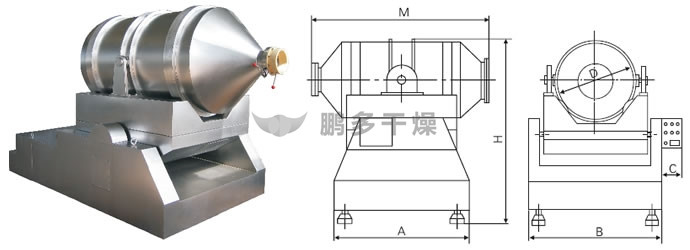

Overall dimension(mm)Power(kw)
ABCDMHTurnSwing
EYH1001000.540860900200400100015001.10.75
EYH3003000.57510001100200580140016501.10.75
EYH6006000.515013001250240720180018501.51.1
EYH8008000.520014001350240810197021001.51.1
EYH100010000.535015001390240850204021802.21.5
EYH150015000.5550180015502409802340228031.5
EYH200020000.57502000167024011002540244032.2
EYH250025000.59502200185024011602760260042.2
EYH300030000.511002400191028012202960264054
EYH500050000.51800270022903001440353030007.55.5
EYH10000100000.53000320027003601800424040001511
EYH12000120000.54000340028003601910486042001511
EYH15000150000.550003500300036021005000440018.515

The bulk specific gravity of materials is 0.6g/cm ³ Please indicate when ordering.
