Working principle

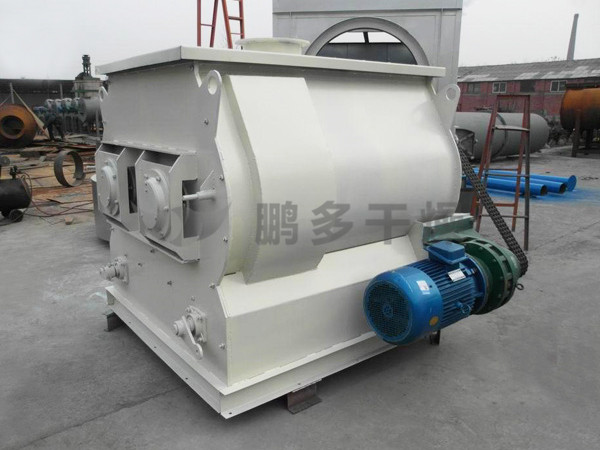

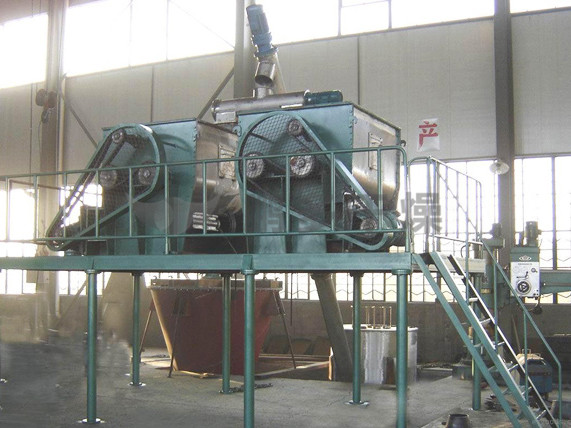

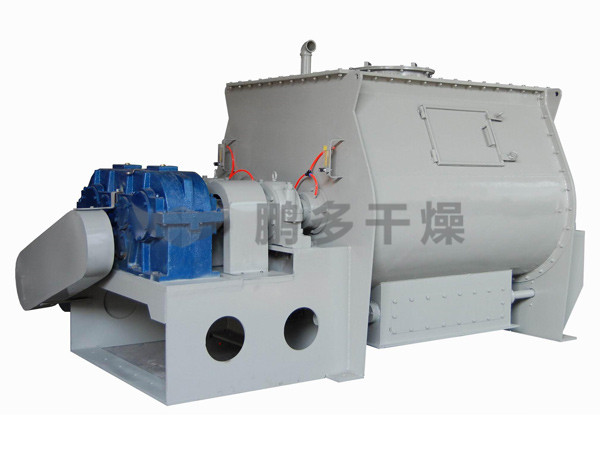

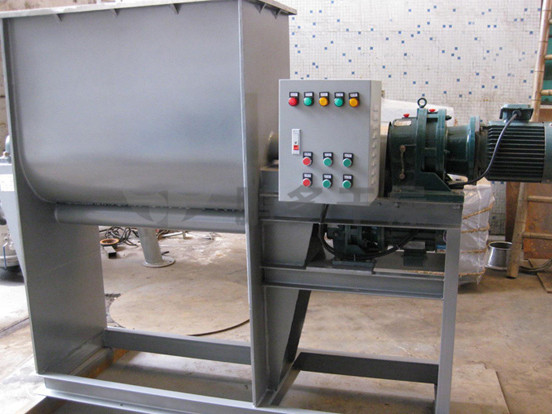

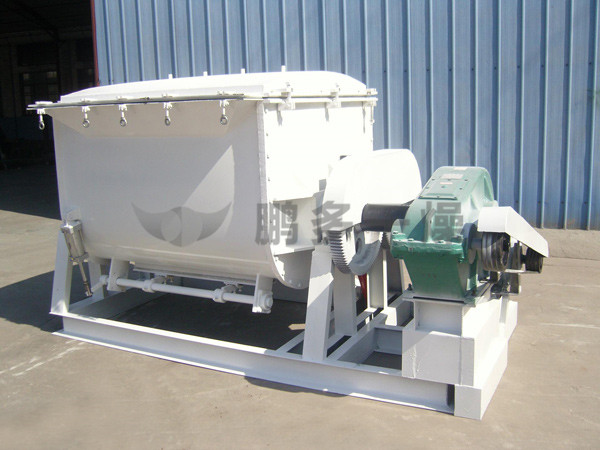

This series of mixers is characterized by strong and efficient mixing. The two mixers in the horizontal cylinder rotate in the opposite direction at the same speed. The specially arranged blades ensure the radial, circumferential and axial movement of materials, forming a compound cycle, and achieving uniform mixing in a very short time.
Product features
1. High mixing accuracy, high speed, low energy consumption, and sealable operation.
2. Pneumatic, electric and manual discharge mode.
3. Atomization device can be arranged on the cylinder cover to realize solid-liquid mixing.
Scope of application
Drying and mixing of chemicals, detergents, coatings, resins, glass silicon, pigments, pesticides, fertilizers, feeds, feed additives, wheat flour, milk powder, spices, trace ingredients, coffee, salt, additives, plastics, and various sizes and powders.
Model and specification | WZ-0.05 | WZ-0.1 | WZ-0.3 | WZ-0.5 | WZ-1 | WZ-2 | WZ-3 | WZ-4 | WZ-6 |
Primary mixing kg | 24-30 | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 |
Installed power kw | 2.2 | 3 | 4-5.5 | 5.5-7.5 | 7.5-11 | 11-15 | 18.5-22 | 22-30 | 30-37 |
Equipment weight kg | 250 | 360 | 750 | 880 | 2100 | 2740 | 3800 | 5100 | 6200 |
